Structural and Civil Analysis of The Black Line House
The Black Line House, with its modern design and unique location on a natural slope, presents technical challenges and innovative solutions that distinguish it as a remarkable project. This report delves into the engineering aspects such as design, materials, and structural systems.
1. Structural System
Framework:
- Likely constructed with reinforced concrete, the house's framework is designed to withstand bending and shear forces.
The cantilevered section uses advanced cantilever or beam and column systems, which balance vertical and horizontal loads.
- The use of lightweight materials in non-load-bearing structures to reduce the overall weight of the building without compromising its strength.
Foundation:
- Piled or raft foundations were utilized to support the structure on the sloped ground, transferring loads to stronger soil layers.
- The foundation must be designed to prevent soil slippage or displacement on natural slopes.
- Geotechnical analysis includes soil testing to determine the bearing capacity and ensure stability.
Structural Loads:
- Dead Loads: Weight of the concrete skeleton, glass, and other fixed components.
- Live Loads: Includes occupants, furniture, equipment, and variable loads such as a pool.
- Environmental Loads: Wind and earthquake loads must be considered due to the house's location on a slope.
- Thermal Loads: Expansion and contraction of materials due to temperature changes.

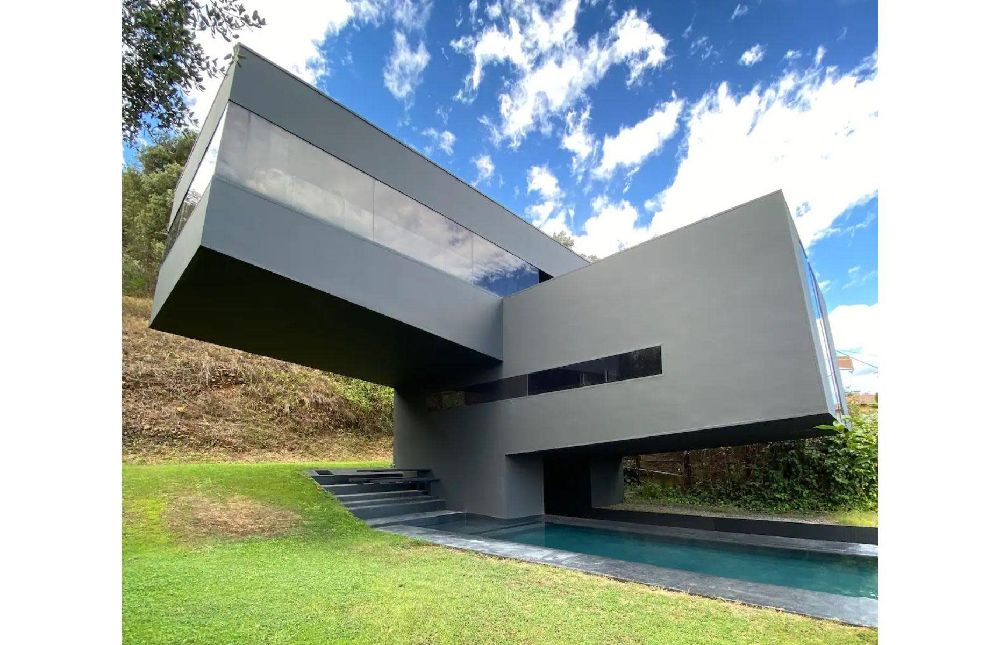

2. Analysis of the Cantilever Section
- Reinforced with pre-tensioned steel or concrete beams, the cantilever section supports its weight without additional columns.
- Stability Analysis: Ensures the structure remains balanced under lateral forces like wind or earthquakes.
- Resilient Connections: Beam and column connections must withstand torsional and shear forces.
- Dynamic Analysis: Evaluates how the structure responds to dynamic loads such as earthquakes and wind gusts.
3. Materials and Construction Methods
- Reinforced Concrete: Provides a strong structure that is resistant to external forces and capable of bearing heavy loads.
- Glass: Impact and temperature-resistant glass enhances the structure's beauty and durability. Laminated or tempered glass is used for added safety.
- Insulation: Thermal and acoustic insulation in walls and roofs reduces energy loss and enhances comfort.
- Sustainable Materials: Use eco-friendly materials to reduce the environmental impact of construction.
4. Engineering Challenges
- Sloped Terrain: Detailed geotechnical studies are required to assess soil stability, slope angle, and bearing capacity.
- Cantilever Section: Complex structural engineering analyses are needed to transfer gravitational forces to the foundation.
- Earthquakes: Earthquake analysis is essential for designing structures with unconventional forms in regions like Catalonia.
- Waterproofing: Ensuring that the foundation and lower structures are waterproof to prevent water ingress from the slope.
5. Sustainable and Modern Systems
- Natural Ventilation: Designed to allow natural airflow within the building, reducing the need for artificial cooling.
- Solar Panels: Likely used on the roof or around the house to provide sustainable energy, reducing the carbon footprint.
- Water Management: Rainwater collection systems for non-drinking purposes are integrated into the house.
- Energy Efficiency: Use of energy-efficient systems and appliances to reduce overall energy consumption.
Special Features
What Makes Us Special?
The perfect choice for unforgettable vacations and events, The Black Line House offers a unique and exclusive space for a dream vacation in the heart of the Garrotxa, the land of volcanoes. Our commitment is to provide you with a luxury experience that will exceed all your expectations.
With elegant designs, carefully selected details, and a highly professional team, we are ready to make your dream vacation a reality.
Architectural Innovation:
Built by RCR, the main objective of this house, located on the slope of one of Olot's volcanoes, is to offer its occupants good views and, at the same time, to reserve the maximum free surface area on the first floor as a garden space. This construction perfectly combines the natural beauty of the surroundings with the comfort and luxury of a high-end hotel. Every detail has been carefully designed to ensure a unique experience for guests, allowing them to enjoy the panoramic views while relaxing in the exquisitely landscaped gardens. The architecture of the accommodation is a testament to the creativity and innovation of RCR, which has succeeded in creating a space that seamlessly blends modern architecture with the natural beauty of its surroundings.
The Black Line House exemplifies the blend of modern architectural design and advanced structural engineering. It is both aesthetically stunning and structurally complex, featuring unique elements like the cantilever section and its slope location. Structural engineers probably used advanced tools and software for analysis and design, ensuring a safe and luxurious experience for its occupants.
